 Details Of JQHS-100* 8 Pulling Force Piston Air Motor Driven Air Winch

Introduction of JQHS-100* 8 Pulling Force Piston Air Motor Driven Air Winch

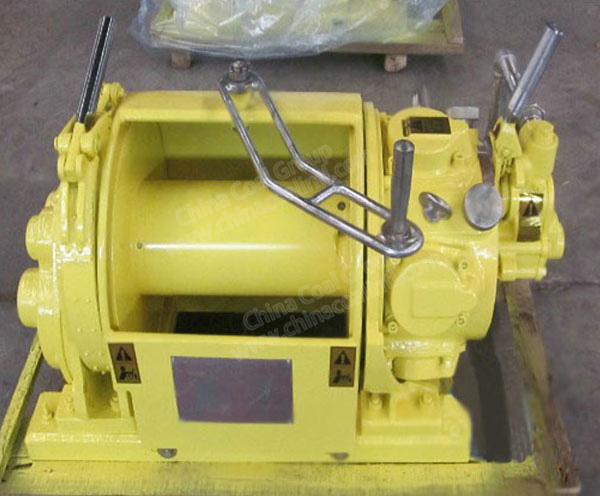

JQHS-100* 8 Pulling Force Piston Air Motor Driven Air Winch is a kind of manual operated single drum type pneumatic air winch. Air Winch adopts compressed air as air winch's power to driven air motor, driving drum via two grades gear (to reduce transmitting speed and enlarge torque) so as to lift and drag heavy cargo.

Parameters of JQHS-100* 8 Pulling Force Piston Air Motor Driven Air Winch

Model	JQHS-20 *18	JQHS-30* 12	JQHS-50* 12	JQHS-100* 8
Rated Pulling force	20KN	30KN	50KN	100KN
The maximum speed of wire rope	18m/min	12m/min	12m/min	8m/min
Rated Power	5.6kw	12kw	16kw	30kw
Rated Intake Air Pressure	0.6Mpa	0.6Mpa	0.6Mpa	0.6Mpa
Rated Air consumption	5m3/min	10m3/min	12.7m3/min	24m3/min
Rope capacity	100m	200m/400m	200m/400m	200m
The diameter of Wire Rope	12mm	16mm	18.5mm	24mm
Overall size	560* 360* 460mm	1250* 500* 700mm	1300* 520* 760mm	1500* 720* 920mm
Weight	200kg	500kg	550kg	1100kg
