Introduction of JQHS-50* 12 Air Tugger Winch for Coal Linings with Disc Brake

JQHS-50* 12 Air Tugger Winch for Coal Linings with Disc Brake as explosion proof traction,hoist power equipment,it is especially us in mining,oil field,geology drilling work, highly combustible and explosion hazard place.

Specifications of JQHS-50* 12 Air Tugger Winch for Coal Linings with Disc Brake

Item Specification & Technical Parameter
Model JQHS-20 *18 JQHS-30* 12 JQHS-50* 12 JQHS-100* 8
Rated Pulling force 20KN 30KN 50KN 100KN
The maximum speed
of wire rope 		18m/min 12m/min 12m/min 8m/min
Rated Power 5.6kw 12kw 16kw 30kw
Rated Intake Air
Pressure 		0.6Mpa 0.6Mpa 0.6Mpa 0.6Mpa
Rated Air consumption 5m3/min 10m3/min 12.7m3/min 24m3/min
Rope capacity 100m 200m/400m 200m/400m 200m
The diameter of
Wire Rope 		12mm 16mm 18.5mm 24mm
Overall size 560* 360* 460mm 1250* 500* 700mm 1300* 520* 760mm 1500* 720* 920mm
Weight 200kg 500kg 550kg 1100kg

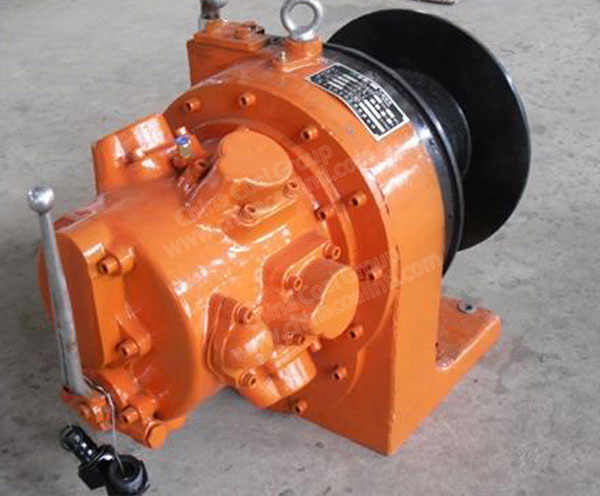

Pictures of JQHS-50* 12 Air Tugger Winch for Coal Linings with Disc Brake
