Introduction of JM5 5 Ton Electric Slow Mining Winch
JM5 5 Ton Electric Slow Mining Winch is mainly applied to lifting, pulling and loading or unloading the weight. For example, it can be used to mount and dismount large and medium-sized concrete and steel structure and machinery equipment. Also, JM5 5 Ton Electric Slow Mining Winch could be utilized as the lifting mechanism of hoisting machinery.
Main Parameter of JM5 5 Ton Electric Slow Mining Winch
|
Model |
JM 2 T |
JM 3 T |
JM 5 T |
|
|
Rated Line Pull KN |
20 |
30 |
50 |
|
|
Total Transmission ratioI |
54.9 |
88.6 |
119.34 |
|
|
Drum |
Dia.XL MM |
219X535 |
1273X594 |
325X640 |
|
Wire rope length M |
180 |
150 |
200 |
|
|
Wire rope |
Specification |
6X19 |
6X19 |
6X19 |
|
Diameter MM |
12.5 |
15.5 |
19.5 |
|
|
Lifting Speed M/MIM |
16 |
16 |
9 |
|
|
motor |
Model |
YZR132M-6 |
YZR160M-6 |
YZR160L-6 |
|
Power KW |
7.5 |
11 |
11 |
|
|
Speed R/MIM |
960 |
960 |
960 |
|
|
Arrester brake model |
TJ2-200 |
TJ2-200 |
YZW300/45 |
|
|
Dimension MM |
980X880X530 |
1130X1020X550 |
1310X1240X800 |
|
|
Weight KG |
425 |
585 |
950 |
|

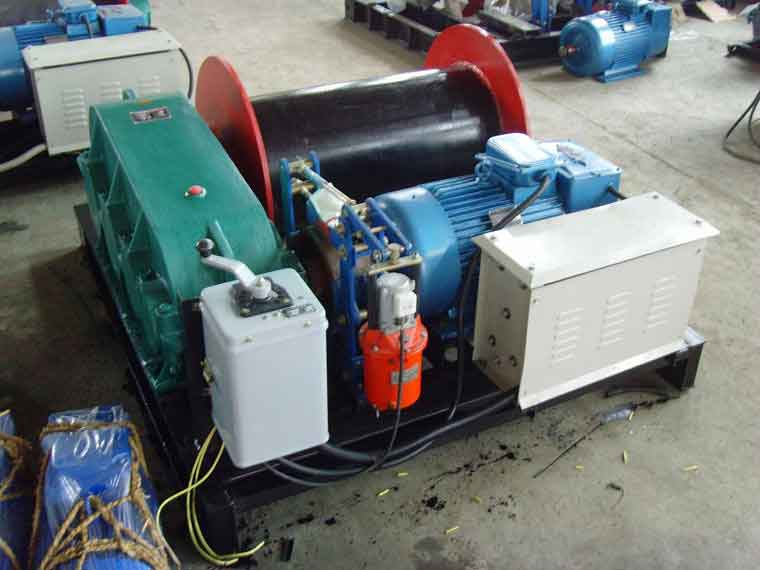

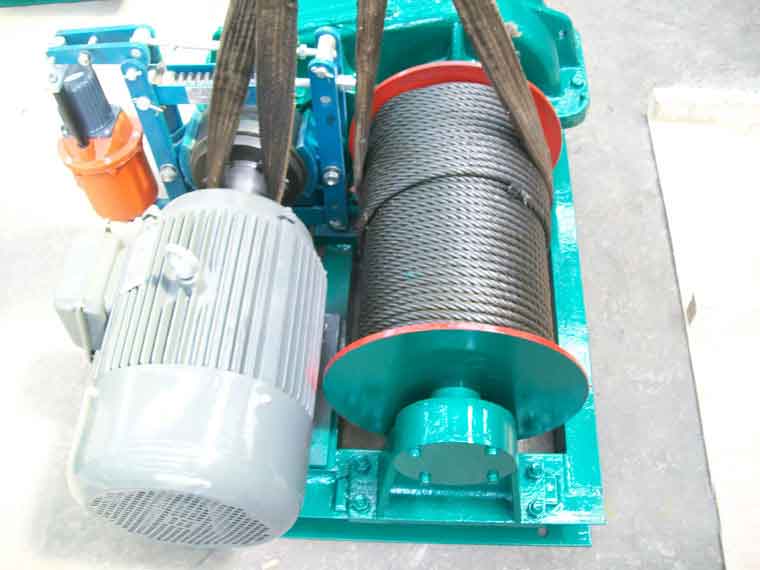

Figure Pictures of JM5 5 Ton Electric Slow Mining Winch
