Introduction of JZ-16/1000 Shaft Sinking Winch for Coal Mining
JZ-16/1000 Shaft Sinking Winch for Coal Mining is a 160KN mining winch with 1300m rope, this jz shaft sinking winch can be used in coal mine, metal mine, non-metallic mine for hanging the swaying tray, water pump, air compressor, grouting tube, wind-cone and other excavation facilities, also can use for hanging heavy loads on surface and underground.Main Parameter of JZ-16/1000 Shaft Sinking Winch for Coal Mining
|
Model |
Steel rope most static tensity |
Rope capacity |
Rope fast speed |
Rope slow speed |
Rope diameter |
Motor type |
Motor power |
Motor voltage |
Machine dimention |
Machine weight |
|
JZ-16/800 |
160KN |
800m |
6m/min |
3m/min |
40mm |
YZR250M2-8 |
37KW |
380V |
3358*3200*2240mm |
11480KG |
|
JZ-16/1000 |
160KN |
1000m |
6m/min |
3m/min |
40mm |
YZR250M2-8 |
37KW |
380V |
3508*3200*2240mm |
11700KG |
|
JZ-16/1300 |
160KN |
1300m |
6m/min |
3m/min |
40mm |
YZR250M2-8 |
37KW |
380V |
3508*3286*2240mm |
11900KG |

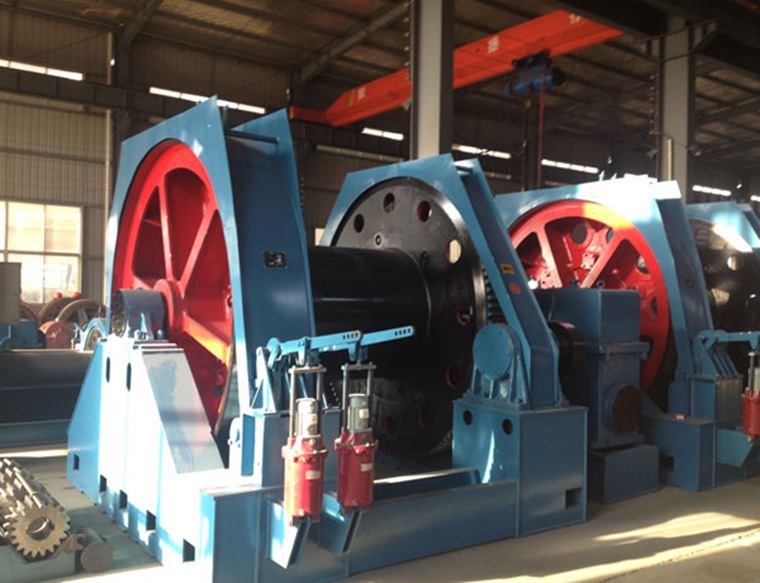

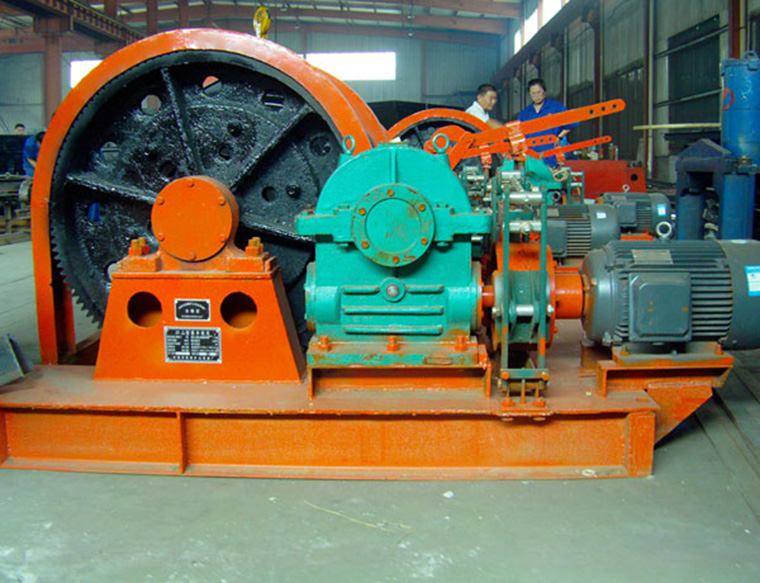

Images of JZ-16/1000 Shaft Sinking Winch for Coal Mining
