 Details Of Digital Railroad Track Gauge Tool

Introduction of Digital Railroad Track Gauge Tool

Digital Railroad Track Gauge Tool (detection rule for short) is used to measure the railway line between the two strands of rail gauge, as well as high levels of special measuring instruments.
Digital gauge feet:Coal mine roadway measuring special JTGC track gauge, there are 600, 900, 1435, general type railway track gauge, folding and light railway track gauge, narrow gauge railways, railway offset '(1300), railway offset' (1400), railway meters, railway curve versine feet, rail gap scale, control of pile measuring scale, etc.

Technical Parameters of Digital Digital Railroad Track Gauge Tool

Display	high-brightness OLED devices can be under the sun
Operating temperature	-40℃～60℃
Power	lithium battery, can work for 6 days
Foot body weight	< 2.2Kg
The storage capacity	10000 sets of data
The maximum error of gauge measurement	±0.2mm
Level measuring maximum error	J (+ / - 1.0 mm), (+ / - 0.5 mm), type B (+ / - 0.5 mm), C (+ / - 0.2 mm)
Curve rail abrasion measured maximum error	±0.2mm

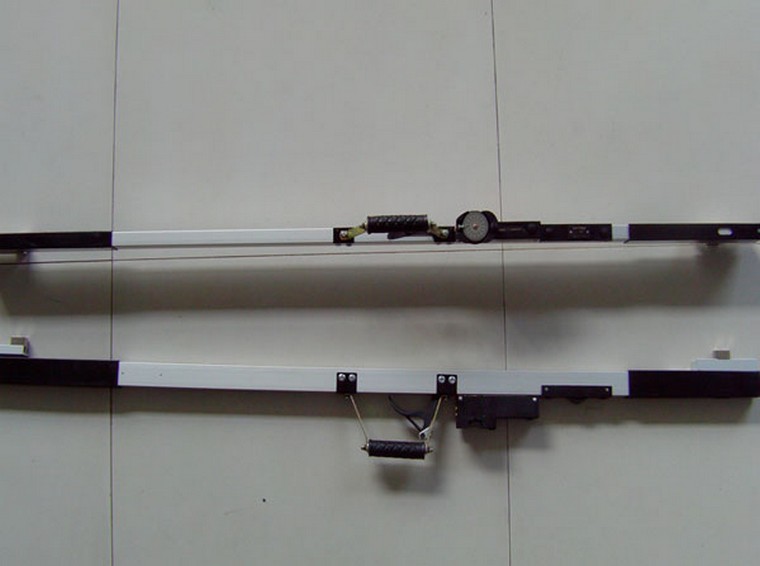

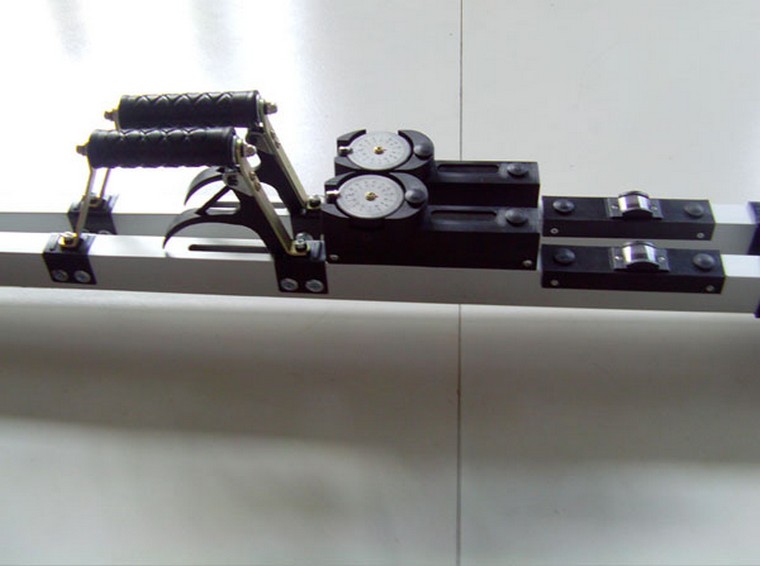

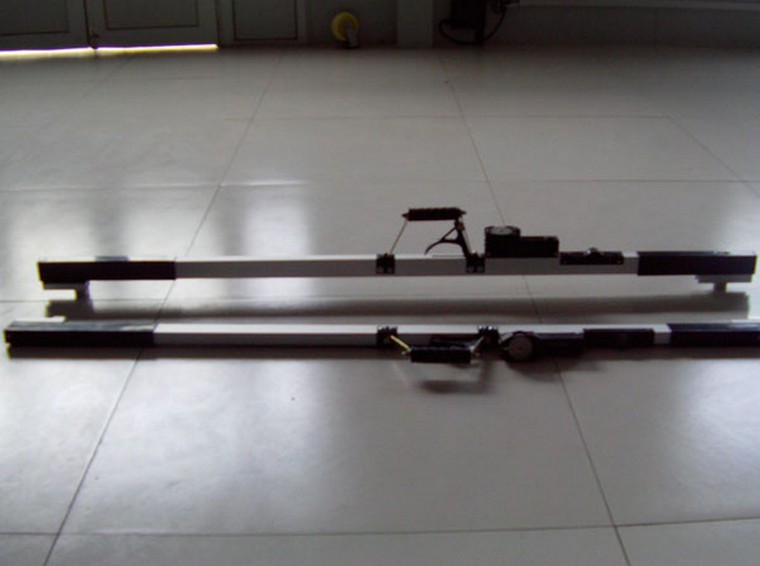

Pictures of Digital Railroad Track Gauge Tool

Digital Railroad Track Gauge Tool

Because of the production batch, the specific model are different, the above pictures are only for reference , you can contact our sales staff for further details on the specific verification.
