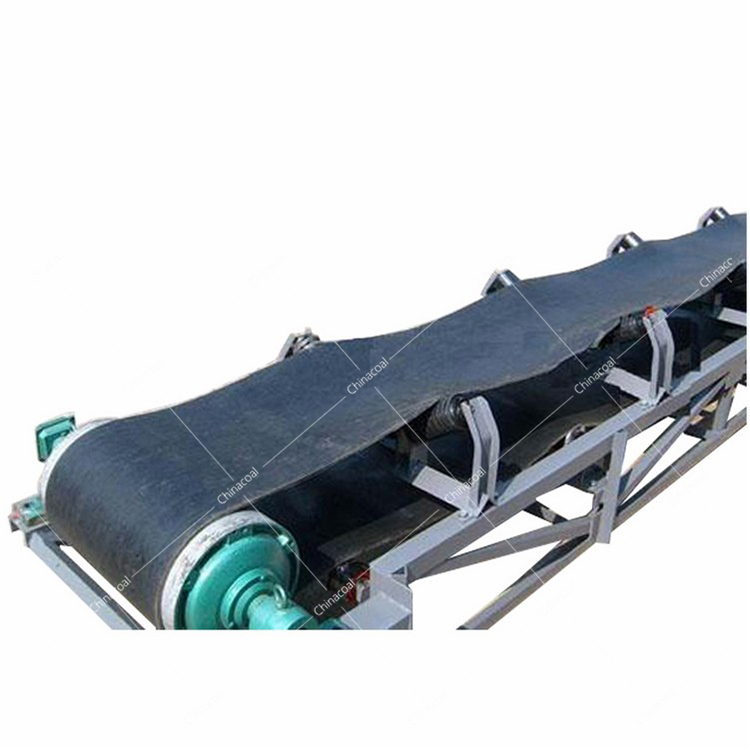

1.Conveyor can be horizontal, tilt and vertical transmission, but also the composition of space transmission lines. Transmission lines are generally fixed.
2.Conveyor has big transport capacity, long distance, but also completing a number of process operation while in the transportation process, which is widely used.
3.Belt conveyor for conveying bulk, whose density is less than 1.67 t/m3.
4.Sent material temperature is less than 60 °C.
5.Component: driven wheel, bendwheel, belt, surpport, motor, reduction gear, top roller, bottom roller.
Belt Width (mm) |
Belt Length (m) |
Power (kw) |
Conveyor speed (m/s) |
Throughput (t /h) |
500 |
≤12 |
3 |
1.3-1.6 |
45-100 |
12-20 |
4-5.5 |
|||
20-30 |
5.5-7.5 |
|||
650 |
≤12 |
4 |
1.3-1.6 |
70-120 |
12-20 |
5.5 |
|||
20-30 |
7.5-11 |
|||
800 |
≤6 |
4 |
1.3-1.6 |
120-180 |
6-15 |
5.5 |
|||
15-30 |
7.5-15 |
|||
1000 |
≤10 |
5.5 |
1.3-2.0 |
160-250 |
10-20 |
7.5-11 |
|||
20-40 |
11-12 |
|||
1200 |
≤10 |
7.5 |
1.3-2.0 |
200-400 |
10-20 |
11 |
|||
20-40 |
15-30 |
