 Details Of Full Automatic Mortar Spraying Machine

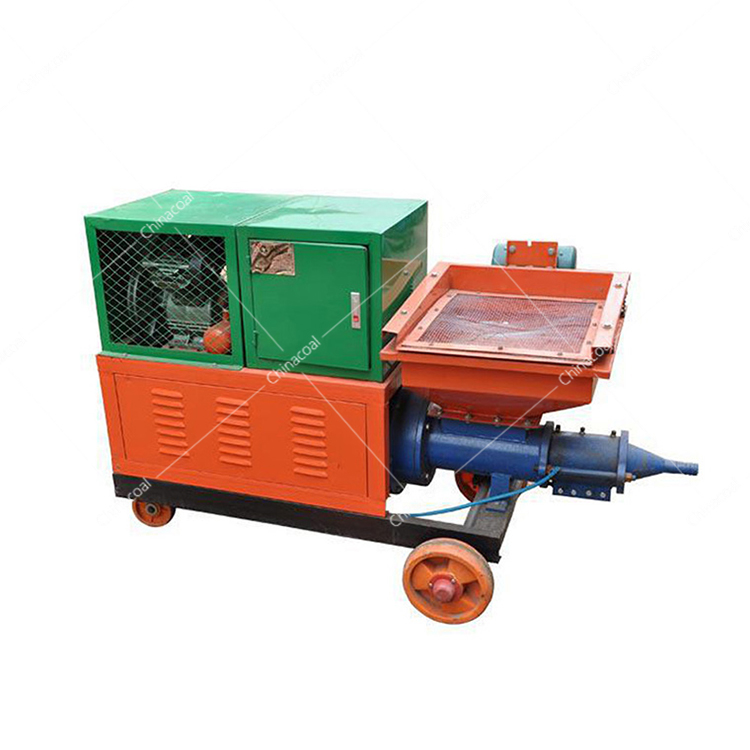

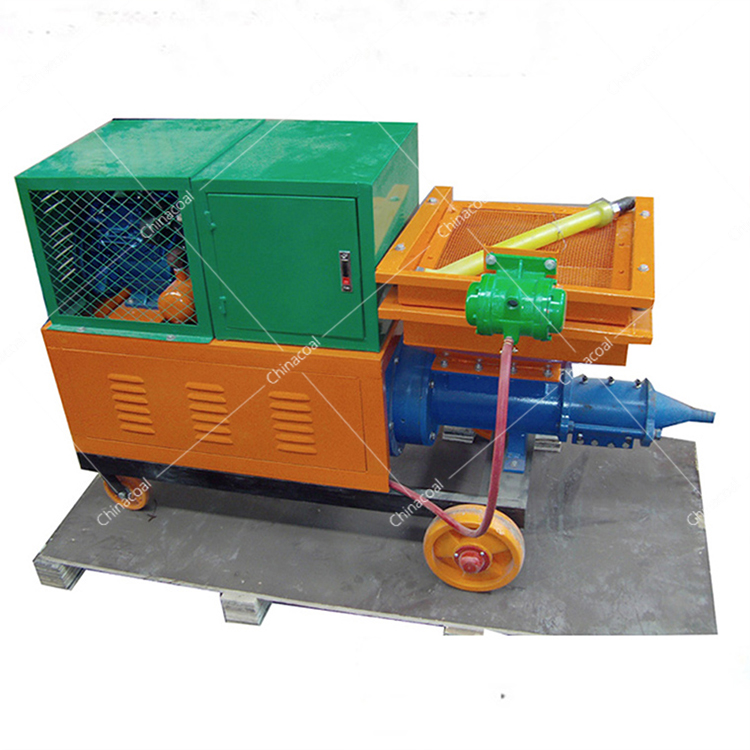

Introduction of Full Automatic Mortar Spraying Machine

Full Automatic Cement Mortar Spraying Machine for wall

The features of Spraying machine:

1. High efficiency, 800 sq / day (thickness1.5cm)

2. Good quality,high bonding, solid and strong, avoid the phenomenon of hollowing and rework.

3. Save money. A machine with three workers, can do ten workers job (plus 10 hours work)

Mortar spraying machine is mainly used for building the mortar products internal and external wall, cement mortar powder coating and outside wall thermal insulation material mortar spraying, refractory material spraying.

Main Parameter of Full Automatic Mortar Spraying Machine

Rated Output	6-85 L/min
Rated Working Pressure	3 MPa
Total Power	8.5Kw
Main Electric Motor	3Phase,380volt,5.5 Kw
Rev.of Rotor	380 RPM
Rated Air Output	250L/min
Water Pump Rated Output	700L/h
Max.Conveying Dist.	50m
Hopper Capacity	120L
Loading Height	1000mm
Conveying Hose ID.	25/32mm
Air Hose ID.	13mm
Overall Dimension(LxWxH)	12406801550mm
Weight	265kg
