 Details Of NCM-4 Petrol Engine Railway Rail Grinding Machine

Introduction of NCM-4 Petrol Engine Railway Rail Grinding Machine

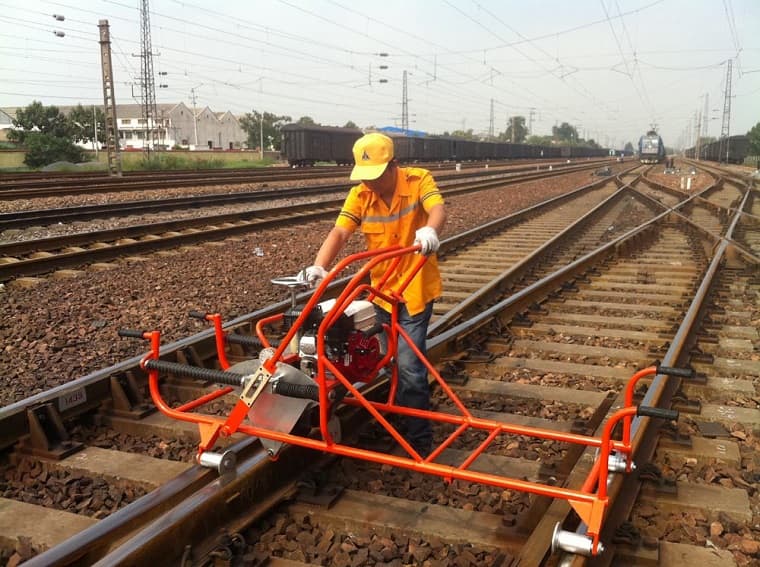

NCM - 4 type internal combustion switch grinding machine is mainly used for grinding switch switch of tongue rail, frog heart rail, wing rail top surface and side fat side, also can burnish all kinds rail top surface and side fat edge.

NCM-4 Petrol Engine Railway Rail Grinder has superior performance, reasonable structure, reliable quality, saves time and effort, is works departments maintenance line the necessary tools.

Features of NCM-4 Petrol Engine Railway Rail Grinding Machine

Gasoline driven, strong adaptability to an open working environment.
2.The feeding of the grinding controlled by the electric, high polishing precision.
3.Following copying, easy operation.

Parameter of NCM-4 Petrol Engine Railway Rail Grinding Machine

1, gasoline engine
Type	HONDA - GX160
Power	3.05 kW
Speed	3600 r/min
2, general flat grinding wheel
Specification	250 x 32 32
Maximum grinding linear speed	40 m/s
3, grinding vertical stroke	170 mm
4, grinding wheel position adjust the Angle (from the vertical direction up to two side Angle respectively)	30
5, outer profile size	2900 x 850 x 1000
6, the machine quality	114 kg
