GYQD-196 hydraulic railway track jacks Product Introduction

GYQD-196 railway track jacks(also known as high stroke hydraulic railway track jacks) maximum force is 196KN, the largest stroke is 220mm, mainly for raising sleeper plate area when pad sands operations, with easy to operate, safe, reliable, fast, high, and so on. When installing the speed turnout may also be used, and can replace the rack. It has a high safety factor, and the advantages of large force . It is the ideal replacement equipment of railway track jack.

GYQD-196 hydraulic railway track jacks Main Parameter

GYQD-196 Hydraulic track lifting machine

Technical Data:

1. rated lifting force:196KN

2. max lifting height: 200mm

3. weight:28kg

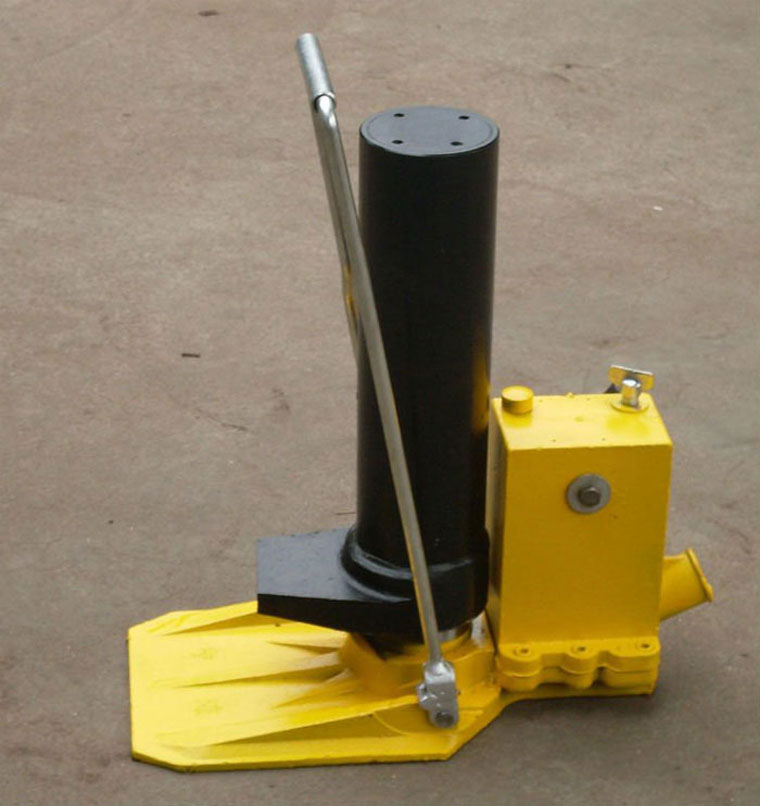

GYQD-196 hydraulic railway track jacks Figure Photos
