Introduction Of YD-22Ⅱ Railway Hydraulic Tamping Machine
YD-22II Gold Chinese Modern Track Machinery Supplier Track Tamping For Salecustomer can choice the engine type
Import petrol engine and Diesel Engine,easy moving,two machines organized on set
Removable,Compact structure,Big vibration force,High efficiency
The walking frame can moving Horizontal and longitudinal
Tamping operation on various rail and sleeper track( ballast cleaning operation)
sleeper track overhaul and medium maintenance
Parameter Of YD-22Ⅱ Railway Hydraulic Tamping Machine
|
Product |
Description |
|
Model |
YD-22II rail tamping machine |
|
Dimension |
1390*750*1600mm |
|
Material |
Metal and stainless steel |
|
Color |
yellow or orange |
|
Application |
Rail track ballast tamping operation |
|
Motive power |
GX390 petrol engine power:9.5KW, RPM:3600round/min |
|
Hydraulic pressure |
5~6MPa |
|
Vibration frequency |
66.7Hz |
|
Exciting force |
22kN |
|
Max.under thrust force |
110mm±10mm(beneath the sleeper) |
|
Production efficiency |
≥ 270pieces/(group/per hour) |
|
Main frame net weihgt |
422KG |

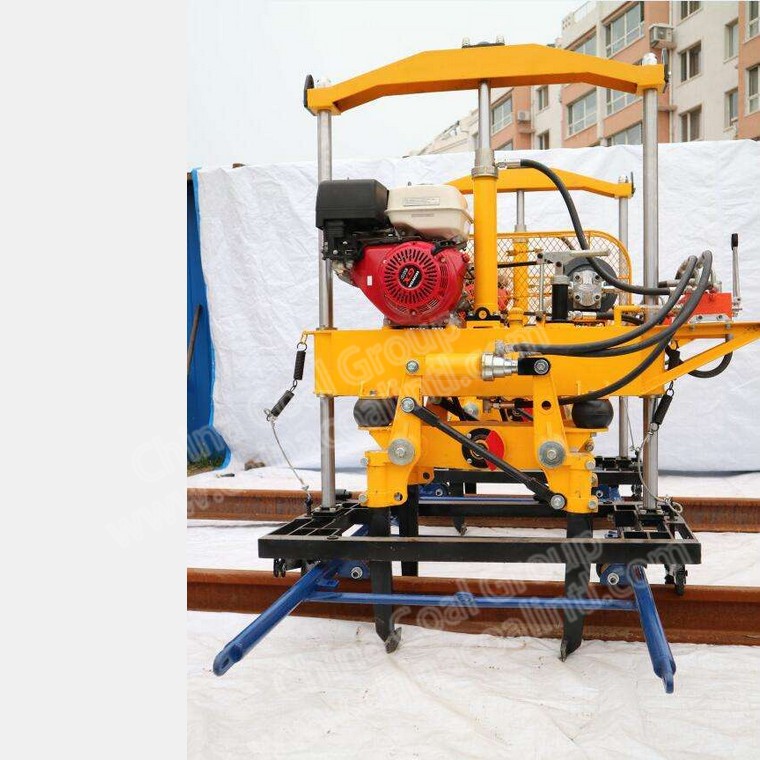

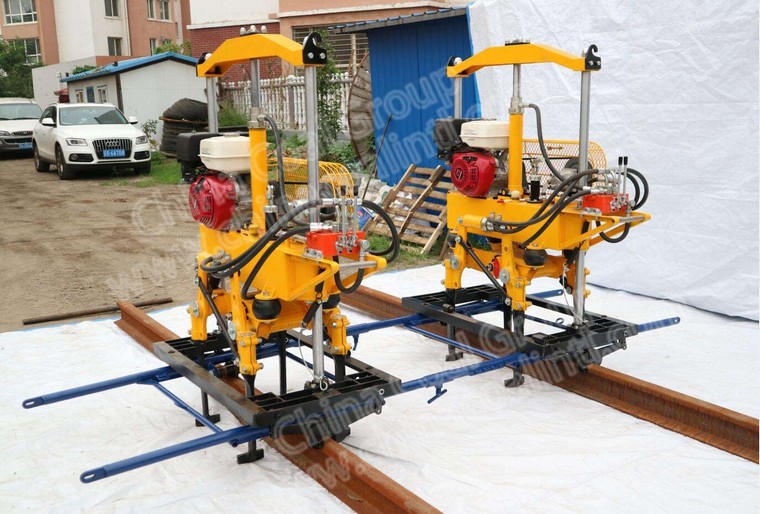

Photos Of YD-22Ⅱ Railway Hydraulic Tamping Machine
