Introduction of Portable Light Tower

MO-2050L LED Portable Light Tower we designed to meet the lighting requirement of the railway, electric utility, public security, emergency maintenance, disaster relief and rescue, other large construction sites and etc

Features of Portable Light Tower

1. Illuminating Brightness: the lamp panel has two high efficient 50W LED lighting, with large scale illumination, high brightness, long distance irradiation and long service time (beyond 100000 hours). Spotlight and floodlight are alternative and could adjust the illumination angle in full tilt range; the irradiation distance of spotlight is beyond 150m.
2. Irradiation Range: With three stage raising and lowing mast, the maximum extension of the mast is 2.8m. The mast as the axis is able to do 360°turning so that to realize the irradiation at any angle.
3. Power Supply: two power supply methods. Using generator power supply, it works continuously over 6h with full tank gasoline; using 220V main supply could realize long time working continuously./li>
4. Operate easily: With separate smart button to control on/off of the two lamps and convenient to adjust the height of the mast manually;the lamp consists of two main parts: the lamp holder (including the lamp panel and mast) and the generator stand (including generator, electric case and generator base). It is convenient to assemble, disassemble and transport. Operate easily and with excellent applicability.

Service Environment of Portable Light Tower

Adopt multiple shockproof structure design, excellent anti-shock performance and could use reliably in the high frequency shock environment;
Adopt environmental light alloy material and high-tech spraying technology, waterproof, dustproof, antirust and suitable to work at outdoor environment for long time;
Perfect electromagnetic compatibility and could not cause interference to the transmission network;
The whole lighting adopts imported high quality metal material, high quality and reliable and work well in the harsh environment.
Custom-tailor service: In order to meet the unique requirement of different clients, we could like to configure the different lamp type, power, lamp quantity, mast height and generator according to our customers own request.

Main Parameter of Portable Light Tower

 1. Lamp panel
A rated voltage: 220V
B working voltage: 220V
C lamp power：2×50W
D light capacity: 2×6500LM
E service lifetime: ＞100000H
2. Continuous working time
A main supply：long time
B generator power supply: 6H
3. Mast
A min height: 1.2M
B max height: 2.8M
4. Generator
A rated output voltage: 220V
B rated power: 550W
C fuel tank capacity: 4.2L
5. Dimensions
A lamp and mast: 500×150×350mm
B generator stand: 580×470×550mm
6. Weight
A lamp panel: 6kg
B mast/generator: 2/33.5kg

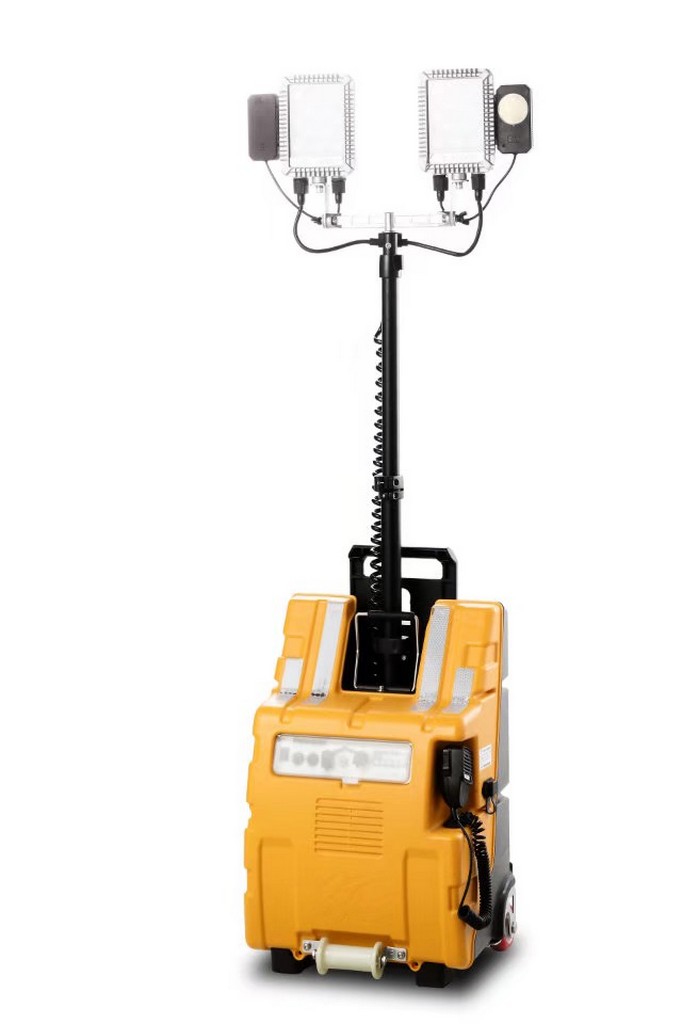

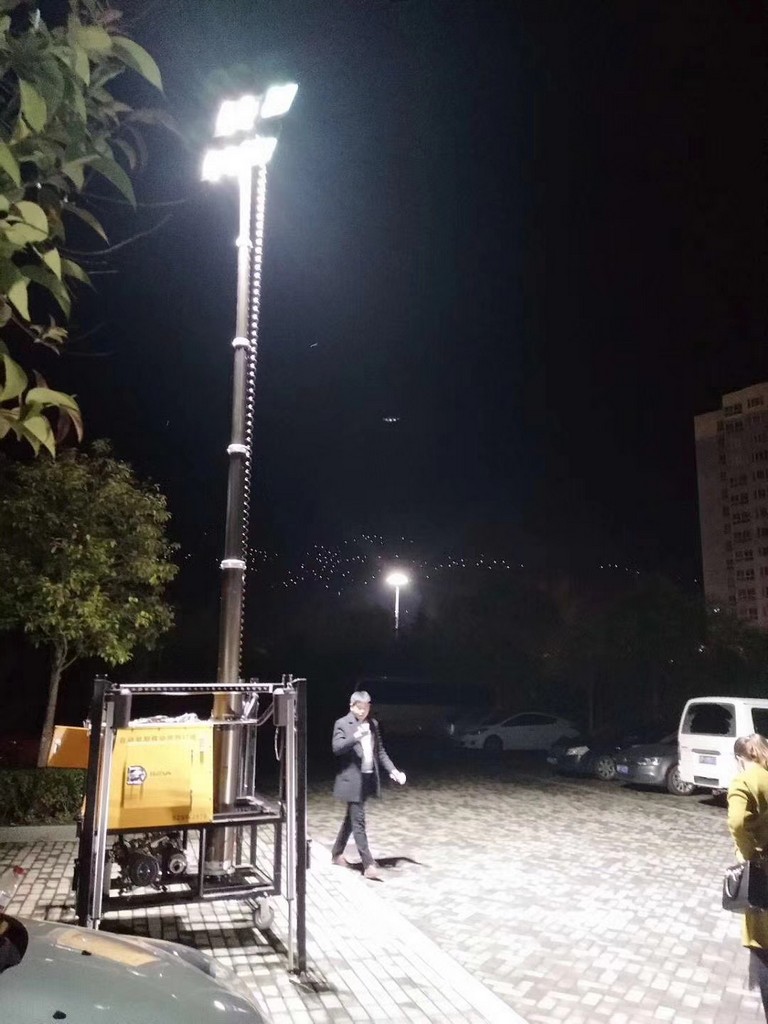

Images of Portable Light Tower
