Introduction

Large-scale Gold Sluice Box is suitable for all kinds of production scale, and we have proved it again and again.

It has high recovery rate for large particles gold, pure gold and superfine gold.

Specification and details

Total length: appr. 2.7m

Width: appr. 40cm (different widths appear in each packing carton; nestification allowed)

After completely disassembled and nested, total dimensions appr. 90cm x 41cm x 35cm;

Total weight appr. 43kg (not including water pump and hosepipe)

The largest feed speed can reach 8ton/hour, while still keep higher running efficiency;

Material size appr. 15cm-20cm

Feed Hopper screen can sift out 99% big particle stone

Equipped with high efficient recovery mat

Assembled within 30 minutes

Portable equipment, can be sent to the destination by Courier service in advance?

All of the Pvc pipe can be bought at the hardware store

Minimum 3 inch impurity pump, water flow at least 60 m3/h

4 inch sand suction pipe can be connected.

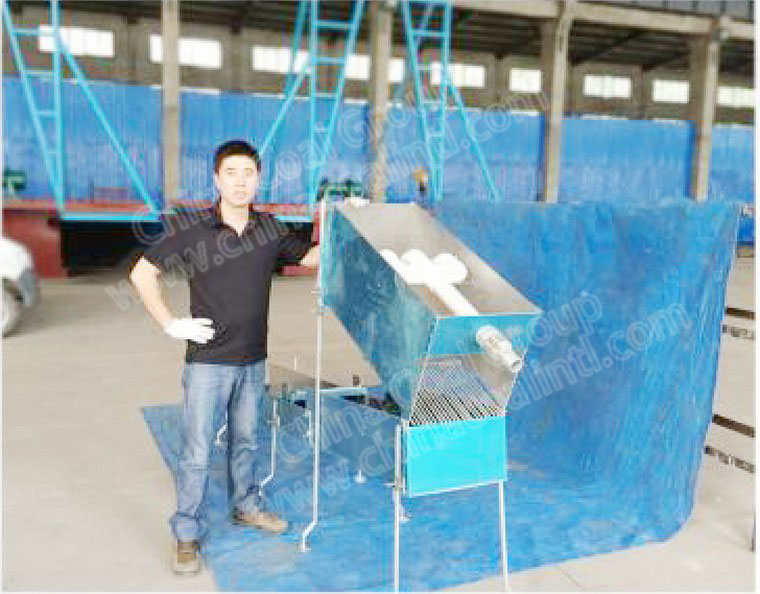

Photos
