Introduction of Railway Digital Switch Detector Track

1.The track inspection instrument is a track geometry status inspection device based on the precise angular measurement principle of fiber optic gyroscope trajectory measurement. It uses a notebook computer adapted for field operations as the data processing center of the entire system, achieving online data and waveform display, and can perform online over-limit alarms for all items.

2.For lines ≤350 km/h, Level 0 track inspection instrument

For lines ≤200 km/h, Level 1 track inspection instrument

3.Travel speed: uniform ≤ 8km/h (4km/h recommended)

Supply voltage: 14.4V±1.5

Sampling spacing: 0.125m (8 points per meter)

Overall dimensions (L×W×H): 1600mm×850mm×235mm

Lithium battery: Rated voltage: 14.4v

Rated capacity: 8Ah

Weight: about 32kg

4.Track inspection instrument detection items：

1. Gauge

2. Track Gauge Variation Rate

3. Cross level  (Superelevation)

4. Track twist

5. Longitudinal level ( Vertical profile)

6. Alignment ( Lateral alignment)

7. Versine

8. Mileage

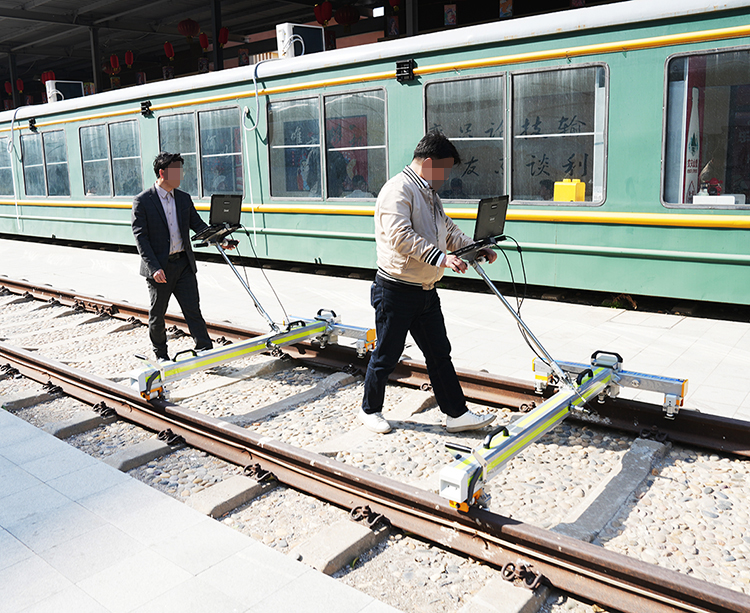

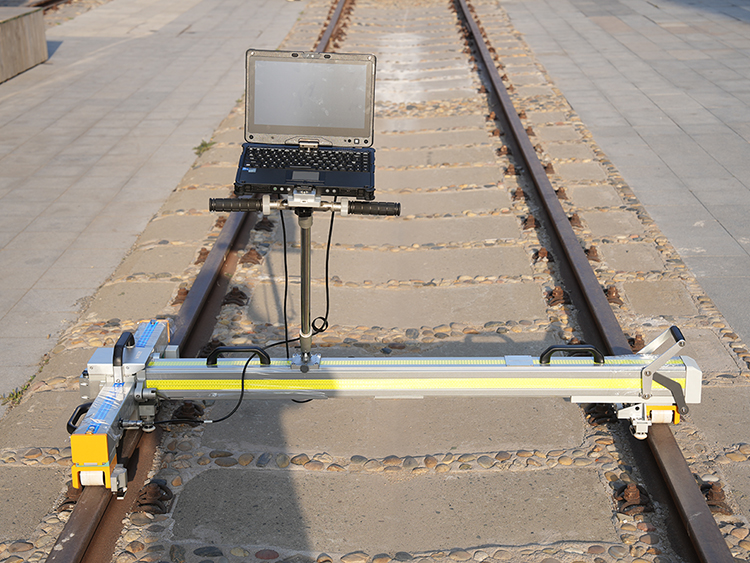

Photos of Railway Digital Switch Detector Track
