Introduction of Motorized Car Pusher

The electric handheld vehicle pusher can push and pull vehicles weighing from 50 to 80,000 kg (wheel diameter ≥ 450mm), rolled goods (paper rolls, cable reels, etc.), or carts.

Pushing capacity is a key factor in heavy load handling. By utilizing the workpiece's own weight, partially or fully converting it into load and transmitting it to the drive wheel, the required pushing force is obtained.

The equipment operates efficiently and simply, requiring no training or maintenance. One person can easily move tons of workpieces, making it perfectly suitable for industrial production applications such as vehicle manufacturing, paper roll manufacturing, and cable manufacturing.

Advantages:
1. small size, flexible and agile.
2. Reduces manual handling, improves labor productivity. Handling efficiency is increased by more than 50% compared to traditional manual labor.
3. Stepless speed control handle. Speed is controllable, solving the problem of workpiece inertia displacement.
4. Reduces failure rate. Including work injuries, labor strain, product damage, etc.
5. Heavy-duty steel structure welded body, working voltage 36V + intelligent protection
6. Can work continuously for 24 hours.

7. Equipment operation is efficient and simple, no training required, no maintenance needed, operated by one person.

Parameter of Motorized Car Pusher

Model	PF25B	RM25B
Propulsion capacity -	Vehicles＜ 20000 KG	Tank wheel trolley ＜ 20000 KG
	Paper roll＜ 10000 KG	Tail vehicle/trolley＜  25000 KG
	Cable ＜ 25000 KG
	Rail vehicles＜ 40000 KG
Machine weight	≤ 38.5  KG	≤ 40.5 KG
Main body structure	Stainless Steel/Coupling Welding
Dimensions (L*W*H)    mm	Main machine: 415*335*188   Max.: 1100*390*1200	Main machine: 430*350*XXX(customized） Max: 1100*395*1100
Battery	Power lithium battery 36V/13Ah (optional 18Ah), LED digital display,Charging time <90 minutes
Transmission mode	Sprocket/Double Row Chain
Control handle	"Unibody alloy casting, single-handed grip, integrated functionality (smooth control + trigger)."
Control lever	High-strength stainless steel, height adjustable (quick-release clamp) + horizontal adjustable (rotatable)."
Walking Wheel Diameter (R)    mm	R=100mm Superior maneuverability and passing performance
Drive Wheel (Dia. * Length * Quantity mm)	Drive wheel:80*285*1, driven wheel:65*215*2, Special wear-resistant FKM rubber	Drive wheel 82*319*1 (Custom), Special wear-resistant fen rubber.
Geared motors	DC 36V brushless motor with air cooling and three-stage planetary gear reduction
Controller type	DC 36V load-adaptive rectifier controller
Walking speed	Infinitely variable speed, supports forward and reverse rotation, 0.1 m/min - 23 m/min
Smart chargers	External input: 220V±10%, 50Hz output: 42V 8A Charging time for lithium batteries (13Ah) < 120 minutes
Noise	Noise ≤ 65dB
Ambient temperature	-15℃-50℃

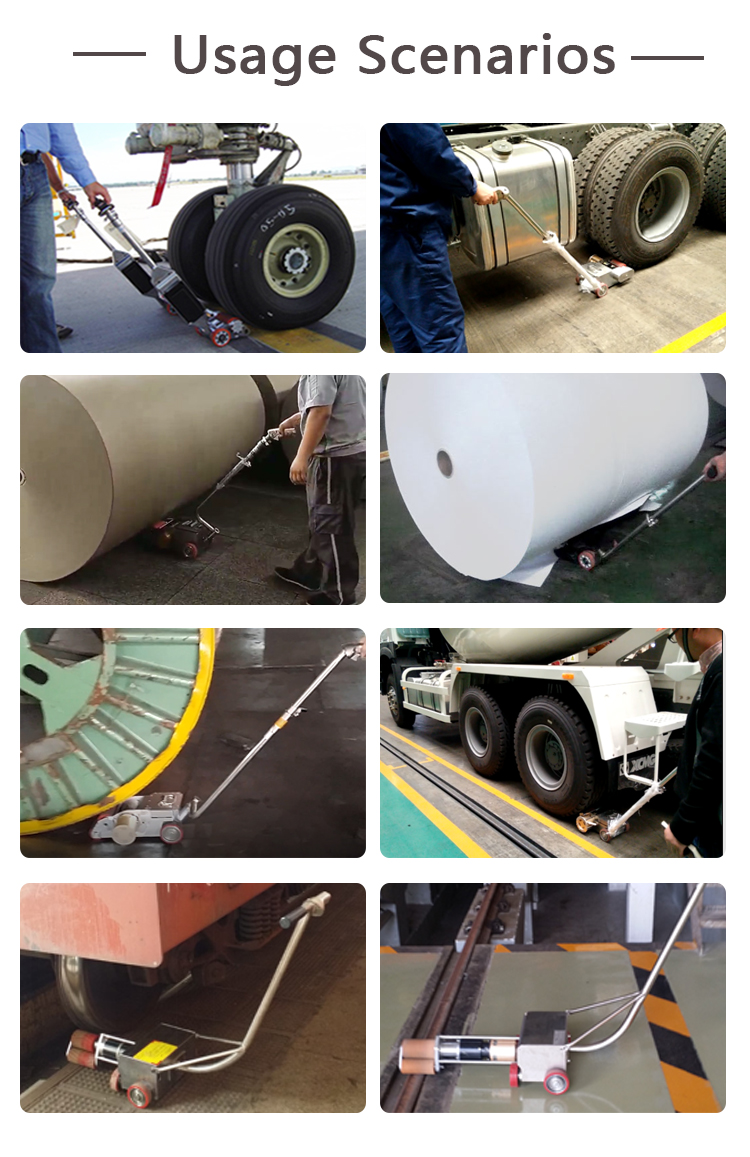

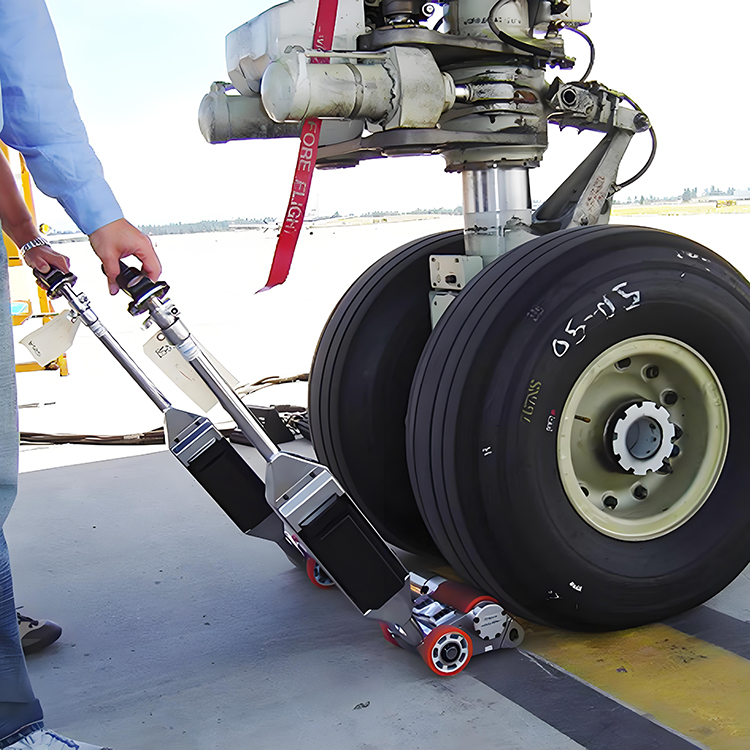

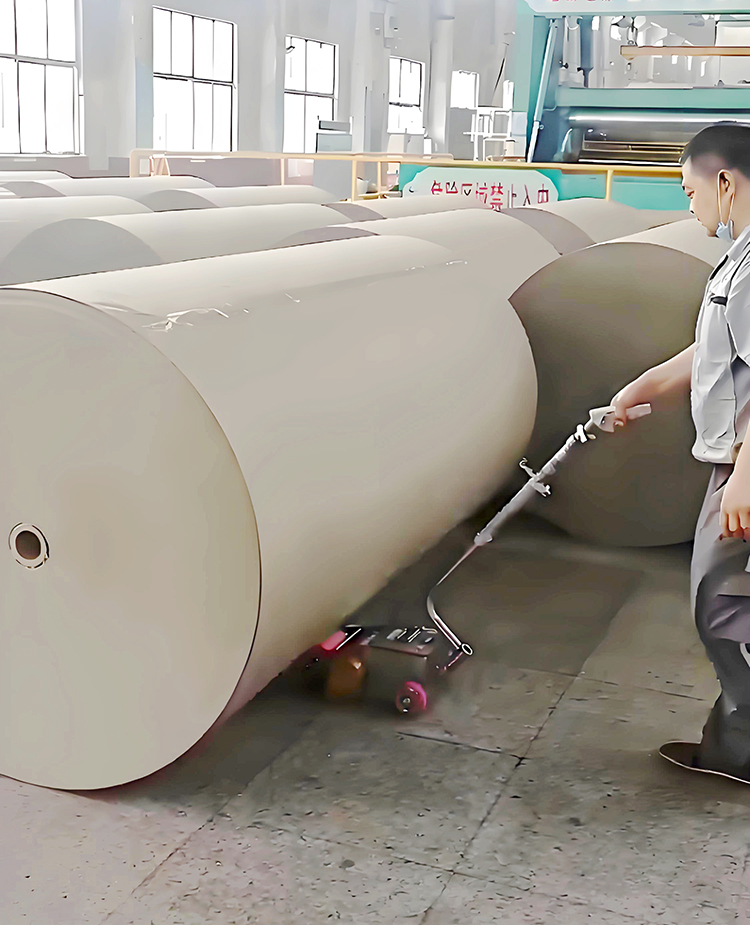

Photos of Motorized Car Pusher
