Product Introduction of PZ Dry Cement Shotcrete Machine

Cement shotcrete machine is widely used in  building construction, mines, tunnels, culverts, subway, hydropower engineering, underground engineering and high marsh coal mine tunnel shotcrete construction operations. There are wet shotcrete machine, dry shotcrete machine, explosion-proof shotcrete machine, and spare parts.

Main Parameter of PZ Dry Cement Shotcrete Machine

Model

PZ-3

PZ-5

PZ-7

HSP-5

HSP-7

HSP-9

Output

3.5m3/h

5m3/h

7m3/h

4.0-5.0m3/h

5.0-7.0m3/h

6.0-9.0m3/h

Max. Convey distance

Horizontal

200m

200m

200m

30-50m

30-50m

30-50m

Vertical

20m

20m

20m

20m

20m

20m

Water cement ratio

≤0.4

≤0.4

≤0.4

≤0.4

≤0.4

≤0.4

Max. Aggregate. size

Φ20mm

Φ20mm

Φ20mm

Φ15mm

Φ15mm

Φ15mm

Hose inner size

Φ38mm

Φ51.mm

Φ64mm

Φ51mm

Φ51/64mm

Φ51/64mm

Operating air pressure

0.4~0.6MPa

0.4~0.6MPa

0.4~0.6MPa

0.3-0.6Mpa

0.3-0.6Mpa

0.3-0.6Mpa

Air consumption

3-4 m3/min

7-8 m3/min

12-15 m3/min

10.0-15.0m3/min

10.0-15.0m3/min

10.0-15.0m3/min

Rotor diameter

350(150)mm

438mm

480mm

438mm

480(160)mm

480(175)mm

Voltage

380v or as your requirement

380v or as your requirement

380v or as your requirement

380v or as your need

380v or as your need

380v or as your need

Overall dimension  mm

1040*550*940

1280*700*1280

1600*700*1150

1280*700*1280

2000*800*1300

2000*800*1300

Whole weight

550kgs

600kgs

900kgs

700kg

800kg

900kg

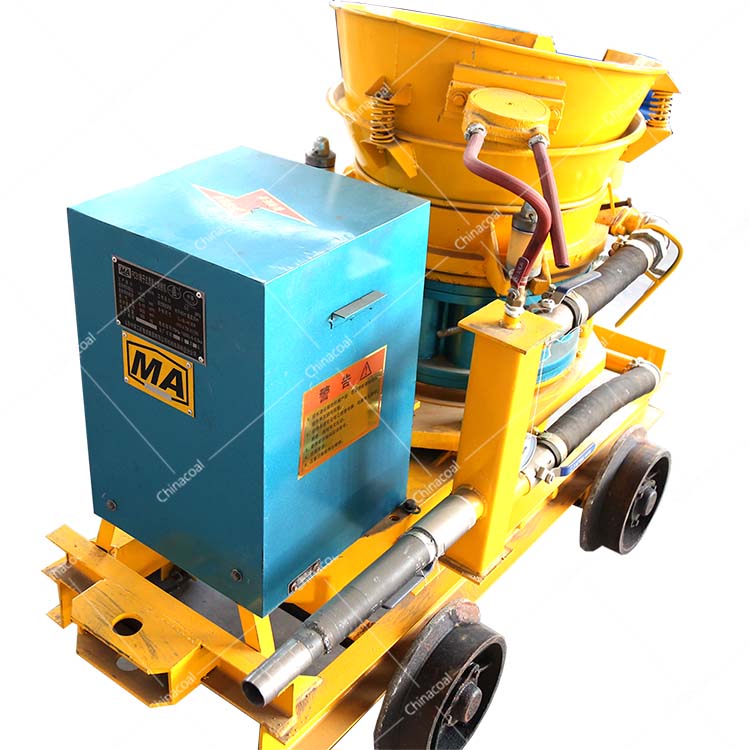

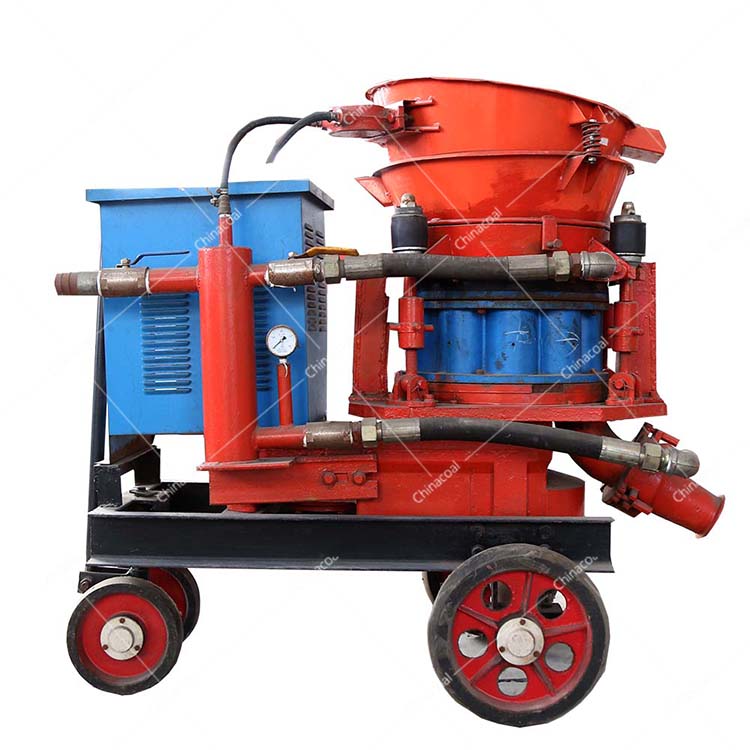

Figure Photos of PZ Dry Cement Shotcrete Machine
