 Details Of PZB Series Explosion Proofing Shotcrete Machine

PZB Series Explosion Proofing Shotcrete Machine

Advantages:

1.This is a high-effective shotcrete machine,which is mainly used for dry-mix, damp-mix shotcreting and steel fiber reinforced shotcreting.
2. Nonadhesion going through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
3. Fourpoint clamping device make it easy to adjust the press between sealing plate and rotordisk so as to no air and dust leak and prolong consumption parts life.,
4. Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shocrete quality.

PZB Series Explosion Proofing Shotcrete Machine Parameter

Model		PZ-3	PZ-5	PZ-7	HSP-5	HSP-7	HSP-9
Output		3.5m3/h	5m3/h	7m3/h	4.0-5.0m3/h	5.0-7.0m3/h	6.0-9.0m3/h
Max. Convey distance	Horizontal	200m	200m	200m	30-50m	30-50m	30-50m
Max. Convey distance	Vertical	20m	20m	20m	20m	20m	20m
Water cement ratio		≤0.4	≤0.4	≤0.4	≤0.4	≤0.4	≤0.4
Max. Aggregate. size		Φ20mm	Φ20mm	Φ20mm	Φ15mm	Φ15mm	Φ15mm
Hose inner size		Φ38mm	Φ51.mm	Φ64mm	Φ51mm	Φ51/64mm	Φ51/64mm
Operating air pressure		0.4~0.6MPa	0.4~0.6MPa	0.4~0.6MPa	0.3-0.6Mpa	0.3-0.6Mpa	0.3-0.6Mpa
Air consumption		3-4 m3/min	7-8 m3/min	12-15 m3/min	10.0-15.0m3/min	10.0-15.0m3/min	10.0-15.0m3/min
Rotor diameter		350(150)mm	438mm	480mm	438mm	480(160)mm	480(175)mm
Voltage		380v or as your requirement	380v or as your requirement	380v or as your requirement	380v or as your need	380v or as your need	380v or as your need
Overall dimension mm		1040550940	12807001280	16007001150	12807001280	20008001300	20008001300
Whole weight		550kgs	600kgs	900kgs	700kg	800kg	900kg

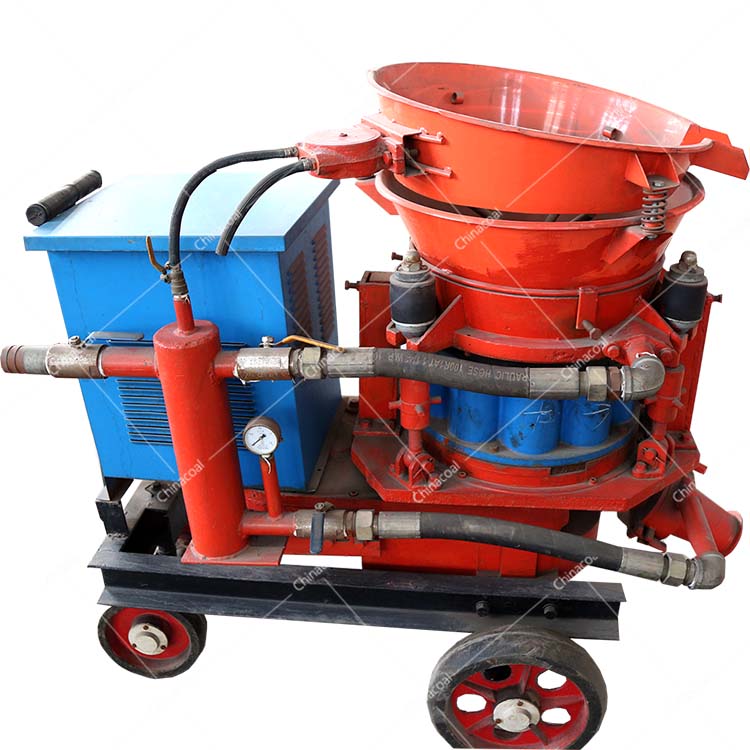

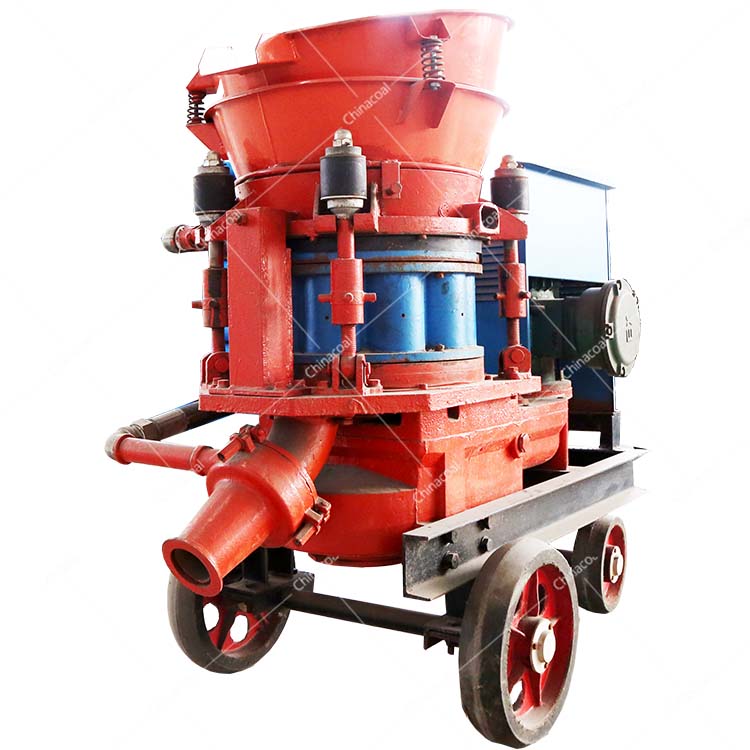

Photo of PZB Series Explosion Proofing Shotcrete Machine
