Introduction Of light steel rail
Specifications 8Kg.12kg. 15kg. 18kg. 22kg, 30kg, material 55Q Q235 two, length of 5 meters -10 meters, and more for the mine roadway lines and factories and other venues transport, traffic hoisting equipment, the maximum load-bearing 10 Ton.
The weight of light steel rail less than or equal to 30kg per meter.The quality requirements of light steel rai is less than heavy rail, only test its chemical composition, tensile strength, hardness and drop hammer test.
Parameter Of light steel rail
|
Model |
Size(mm)A X B X C X D |
Weight(kg) |
Length(m) |
|
5kg/m |
50x44x22x4.5 |
5.3 |
6m,8m,10m |
|
8kg/m |
65x54x25x7 |
8.42 |
6m,8m,10m |
|
9kg/m |
63.5x63.5x32.1x5.9 |
8.94 |
6m,8m,10m |
|
11kg/m |
80.5x66x32x7 |
11.2 |
6m,8m,10m |
|
12kgm |
69.85x69.85x38.1x7.54 |
12.2 |
6m,8m,10m |
|
15kg/m |
79.37x79.37x42.86x8.33 |
15.2 |
6m,8m,10m |
|
18kg/m |
90x80x40x10 |
18.06 |
6m,8m,10m |
|
22kg/m |
22kg/m |
22kg/m |
6m,8m,10m |
|
24kg/m |
107x92x51x10.9 |
24.46 |
6m,8m,10m |
|
30kg/m |
107.95x107.95x60.33x12.30 |
30.1 |
6m,8m,10m |

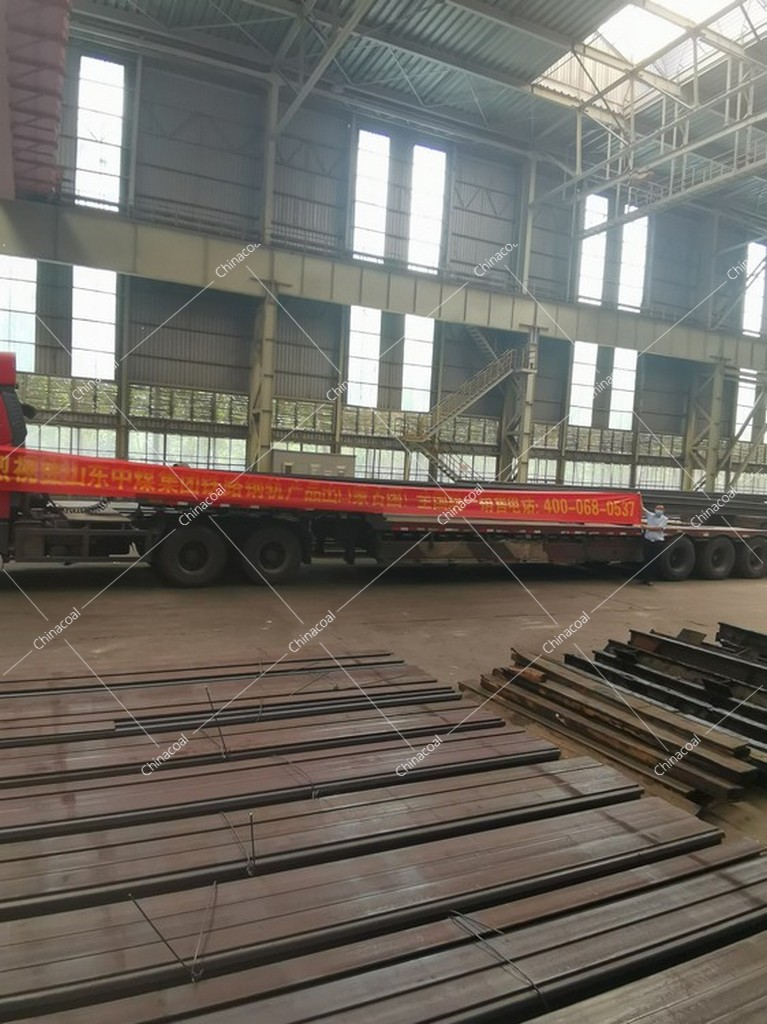

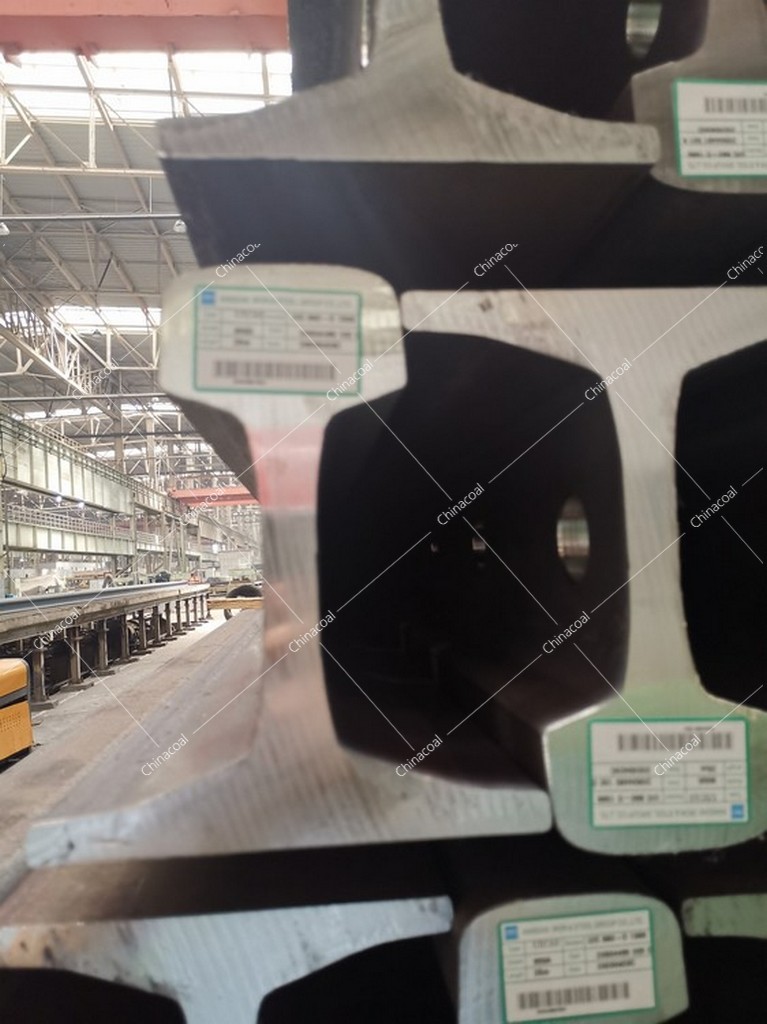

Photos Of light steel rail
