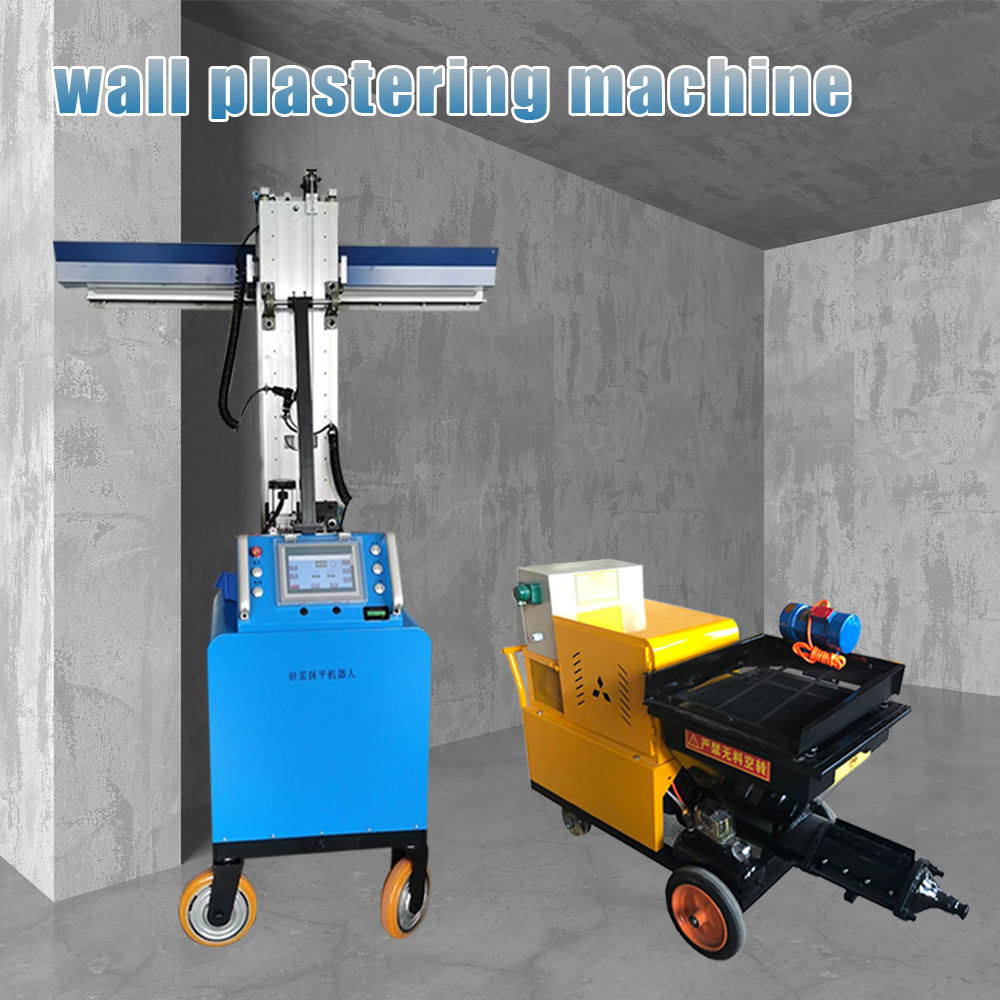

Wall Plastering Machine is also known as: Wall finishing machine. It is a machine specially designed for wall plastering. A hoist with a vertical gantry and a counter scraper frame is mounted on the upper surface of the chassis, and a hopper above the chassis and connected to the chassis is installed inside the two columns of the scraper frame. The hopper can be slidably attached to the two columns by the hoisting machine. One side of the gantry is provided with a discharge opening on the upper façade of the hopper, and a squeegee is mounted on the lower part of the discharge opening; in the hopper, along the width direction thereof Supported by a dial roller, the motor is connected to the dial by a speed reducer, and the other end of the hopper is provided with a feed port.
Name | parameters |
Color | Yellow, green, blue, white |
Voltage | DC48V |
Power supply method | lithium iron phosphate battery |
Standard battery capacity | 35AH |
Angle adjustment method | Sensor with electric cylinder |
Parameter display and setting method | Touch Screen Monitor |
Elevate the motor | DC48V0.75kw brushless servo motor |
Braking method | Electric brake |
Robot arm dimensions mm | 242*120*18500 |
Host dimensions (L*W*H) mm | 700*550*1050 |
Overall dimensions (L*W*H) mm | 850*550*1920/895*550*192 |
Spatula length m | 1.3 meters |
Leveling height m | 3m/4m |
Total weight Kg | 187/210 |
Package size and weight /3m | 1050mm*660mm*2090mm/236kg |
Package size and weight /4m | 1100mm*660mm*2090mm/266kg |
