 Details Of Construction Cement Pumping Machine Concrete Conveying Pump

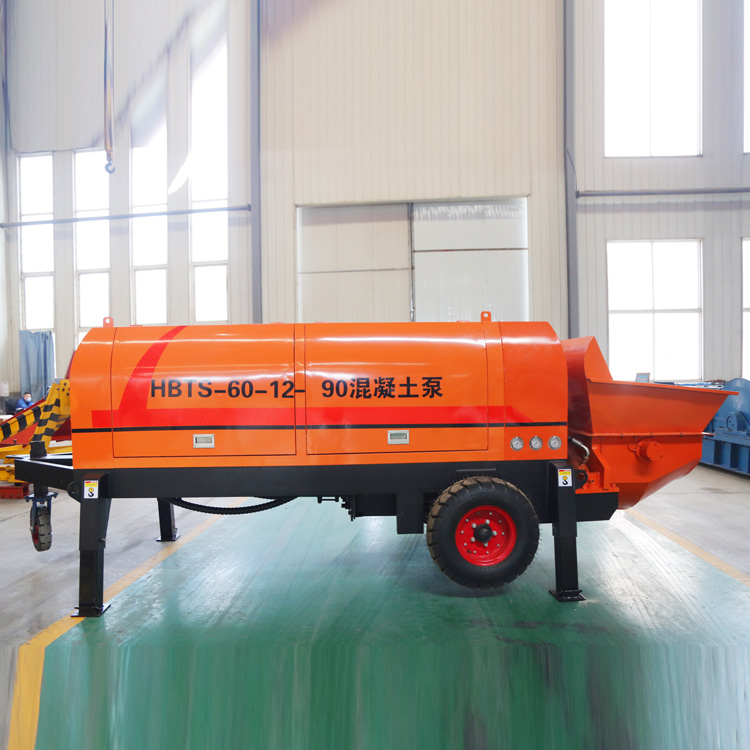

Introduction Of Construction Cement Pumping Machine Concrete Conveying Pump

Concrete conveying pump is also known as concrete pump, consists of the pump and delivery tube. It's a machine using pressure to continuously transported concrete along the pipeline. Mainly used in housing construction, bridge and tunnel construction.

Feature of Construction Cement Pumping Machine Concrete Conveying Pump

Electronic control system:

Fully enclosed electrical control box, protection and control device can work in harsh conditions.

Adopts PLC programmable controller to simplify procedures for electrical, reliability and service life significantly improved, and with fault display for easy troubleshooting. Wired remote control, safe operation, and convenient.

Hydraulic system:

Lift type side door, operation and maintenance is very convenient.

Side door using special technology design can effectively reduce operating noise.

Dual pumps, dual circuit hydraulic system.

System is simple, long life components, high reliability.

Pumping oil using non-contact automatic extension phase commutation and control, avoiding the commutation impact commutation accurate, stable and reliable.

Hydraulic system with safety overflow protection, overpressure automatically cut shutoff device , multi-stage protection for main pumps.

Using suction filtration technology, to avoid foreign matter into the hydraulic circuit to improve system reliability while significantly extending system component life.

Separate forced air cooling, make sure the oil temperature is lower than 60 ℃.

Parameters Of Construction Cement Pumping Machine Concrete Conveying Pump

Model	HBTS15/8/15	HBTS-20	HBTS30/10/30	HBT40/8/45	HBT50/10/55	HBT60	HBT80
Max Theoretical Delivery Volume	7-11m³/h	15m³/h	25m³/h	35m³/h	50m³/h	60m³/h	75-80**m³/h
Max Pumping Concrete Pressure	8MPa	10MPa	10MPa	10MPa	10MPa	13MPa	18MPa
Distribution Valve Form	S-pipe valve	S-pipe valve	S-pipe valve	S-pipe valve	S-pipe valve	S-pipe valve	S-pipe valve
Concrete Conveying Cylinder Bore*Stroke	Φ120*500mm	Φ140*650mm	Φ160*750mm	Φ160*1000mm	Φ180*1000mm	Φ200*1400mm	Φ230*1800mm
Outlet Diameter	Φ125mm	Φ100mm	Φ125mm	Φ150mm	Φ150mm	Φ200mm	Φ200mm
Rated Power	15KW	30.1KW	40.1KW	45KW	55kw	75KW	110KW
Rated Speed	1480r/min	1280r/min	1280r/min	1480r/min	1480r/min	1480r/min	1480r/min
Hydraulic Circuit Form	open circuit	open circuit	open circuit	open circuit	open circuit	open circuit	open circuit
Pumping Xiyong Oil Pressure	18MPa	18MPa	18MPa	28MPa	28MPa	28MPa	40MPa
Oil Pressure Of Stirring System	8MPa	8MPa	8MPa	8MPa	8MPa	8MPa	15MPa
Hydraulic Tank Volume	70L	200L	250L	240L	240L	560L	560L
Max Conveying Vertical Distance	30m	120m	120m	120m	120m	150m	250m
Max Conveying Horizontal Distance	80m	250m	250m	250m	250m	300m	800m
Max Particles Allowed	30mm	30mm	30mm	40mm	40mm	40mm	60mm
Dimensions LW/H	2300-800-1400mm	340011001700mm	340011001700mm	380017001700mm	410017001700mm	480018001700mm	580018001900mm
Total Mass	650KG	1500KG	1500kg	2600KG	2900KG	3800KG	5000KG
