Introduction of HBT Series Diesel Concrete Pump
HBT series Diesel Engine Mini Concrete Pump of small concrete pumps are widely used in engineering projects, such as residential building, bridge, tunnel, etc. and this concrete pump trucks are especially suitable for areas with power shortage. Daswell is dedicated to being the most professional concrete pump supplier. You can find many small concrete pumps for sale here. We are looking forward to your further enquiries.
Features of HBT Series Diesel Concrete Pump
1. HBT Diesel Engine Mini Concrete Pump adopt original VOLVO and LOVOL diesel engines as the power of pumps;
2. Suitable for areas with power shortage;
3. The full hydraulic system can extend component life, improve equipment reliability, and reduce the failure rate and maintenance costs;
4. The S tube valves are cast into shape with high manganese steel and has the dual advantages of anti-high pressure and anti-wearing.
5. The seal components in big cylinder adopt the products of American Parker.
Parameter of HBT Diesel Engine Mini Concrete Pump
| Model | HBTS15/8/15 | HBTS-20 | HBTS30/10/30 | HBT40/8/45 | HBT50/10/55 | HBT60 | HBT80 |
| Max Theoretical Delivery Volume | 7-11m³/h | 15m³/h | 25m³/h | 35m³/h | 50m³/h | 60m³/h | 75-80**m³/h |
| Max Pumping Concrete Pressure | 8MPa | 10MPa | 10MPa | 10MPa | 10MPa | 13MPa | 18MPa |
| Distribution Valve Form | S-pipe valve | S-pipe valve | S-pipe valve | S-pipe valve | S-pipe valve | S-pipe valve | S-pipe valve |
| Concrete Conveying Cylinder Bore*Stroke | Φ120*500mm | Φ140*650mm | Φ160*750mm | Φ160*1000mm | Φ180*1000mm | Φ200*1400mm | Φ230*1800mm |
| Outlet Diameter | Φ125mm | Φ100mm | Φ125mm | Φ150mm | Φ150mm | Φ200mm | Φ200mm |
| Rated Power | 15KW | 30.1KW | 40.1KW | 45KW | 55kw | 75KW | 110KW |
| Rated Speed | 1480r/min | 1280r/min | 1280r/min | 1480r/min | 1480r/min | 1480r/min | 1480r/min |
| Hydraulic Circuit Form | open circuit | open circuit | open circuit | open circuit | open circuit | open circuit | open circuit |
| Pumping Xiyong Oil Pressure | 18MPa | 18MPa | 18MPa | 28MPa | 28MPa | 28MPa | 40MPa |
| Oil Pressure Of Stirring System | 8MPa | 8MPa | 8MPa | 8MPa | 8MPa | 8MPa | 15MPa |
| Hydraulic Tank Volume | 70L | 200L | 250L | 240L | 240L | 560L | 560L |
| Max Conveying Vertical Distance | 30m | 120m | 120m | 120m | 120m | 150m | 250m |
| Max Conveying Horizontal Distance | 80m | 250m | 250m | 250m | 250m | 300m | 800m |
| Max Particles Allowed | 30mm | 30mm | 30mm | 40mm | 40mm | 40mm | 60mm |
| Dimensions L*W/*H | 2300-800-1400mm | 3400*1100*1700mm | 3400*1100*1700mm | 3800*1700*1700mm | 4100*1700*1700mm | 4800*1800*1700mm | 5800*1800*1900mm |
| Total Mass | 650KG | 1500KG | 1500kg | 2600KG | 2900KG | 3800KG | 5000KG |

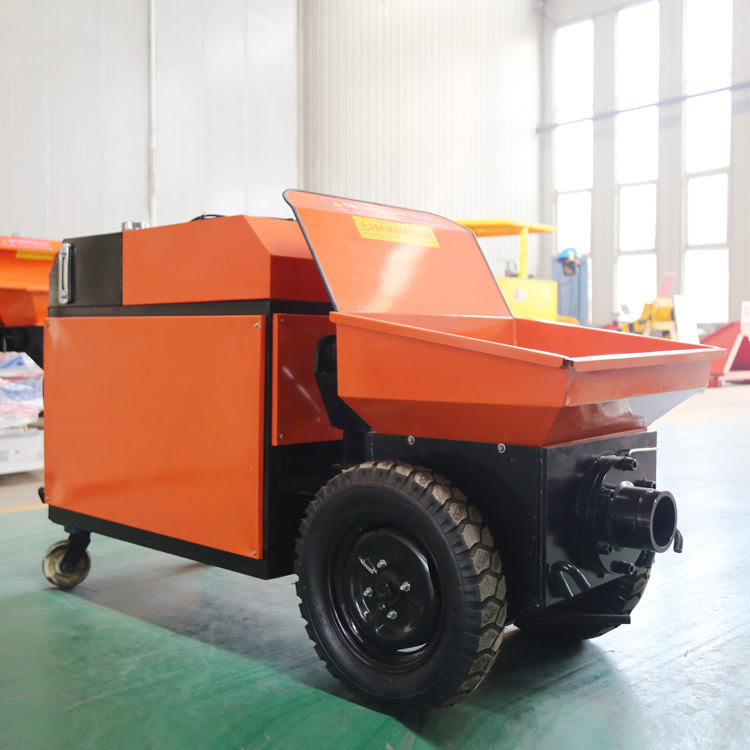

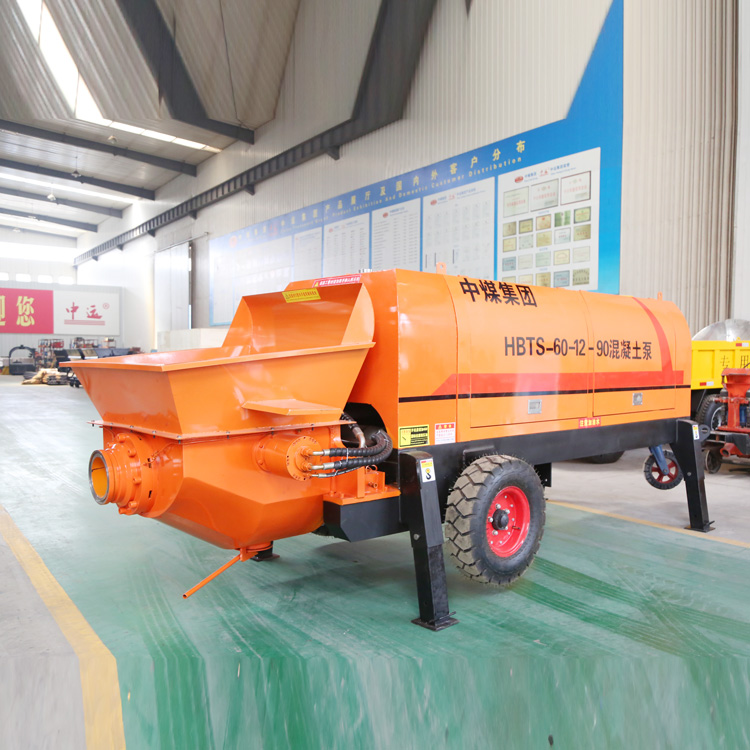

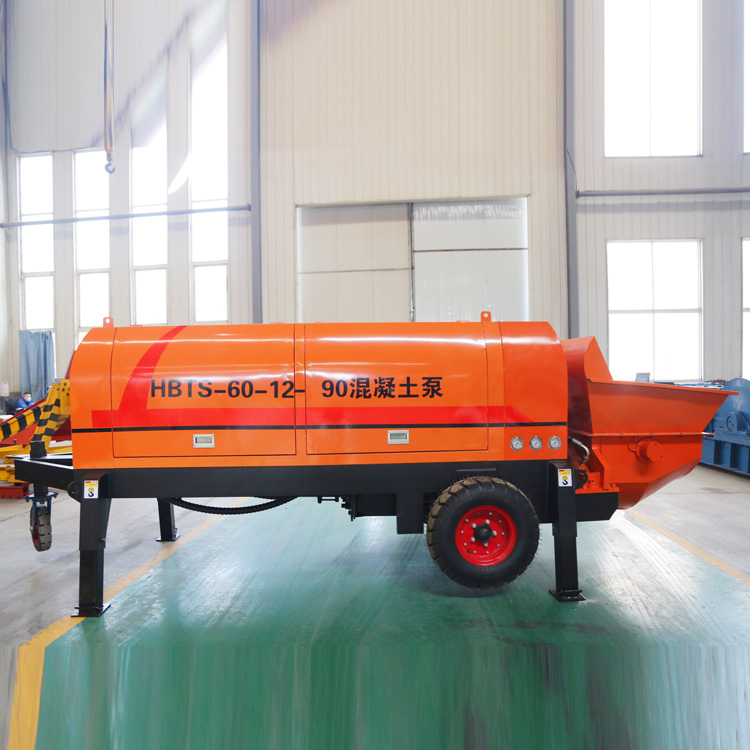

Pictures of BTS Series Diesel Concrete Pump
