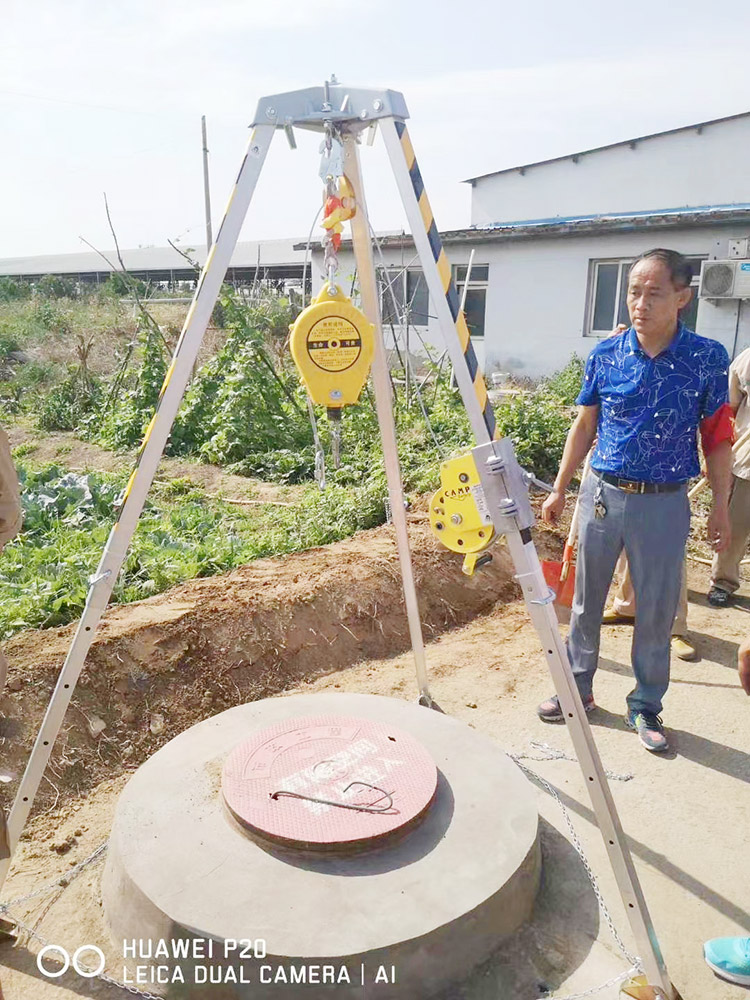

Professional Flexible Rescue Tripod is mainly used for rescue operations in high altitude, cliff and confined space, such as underground pipe, shaft, cesspit, closed container etc. Widely used by firefighting, municipal administration, mining etc rescue institution.
Ring protection chain on the feet of rescue tripod;

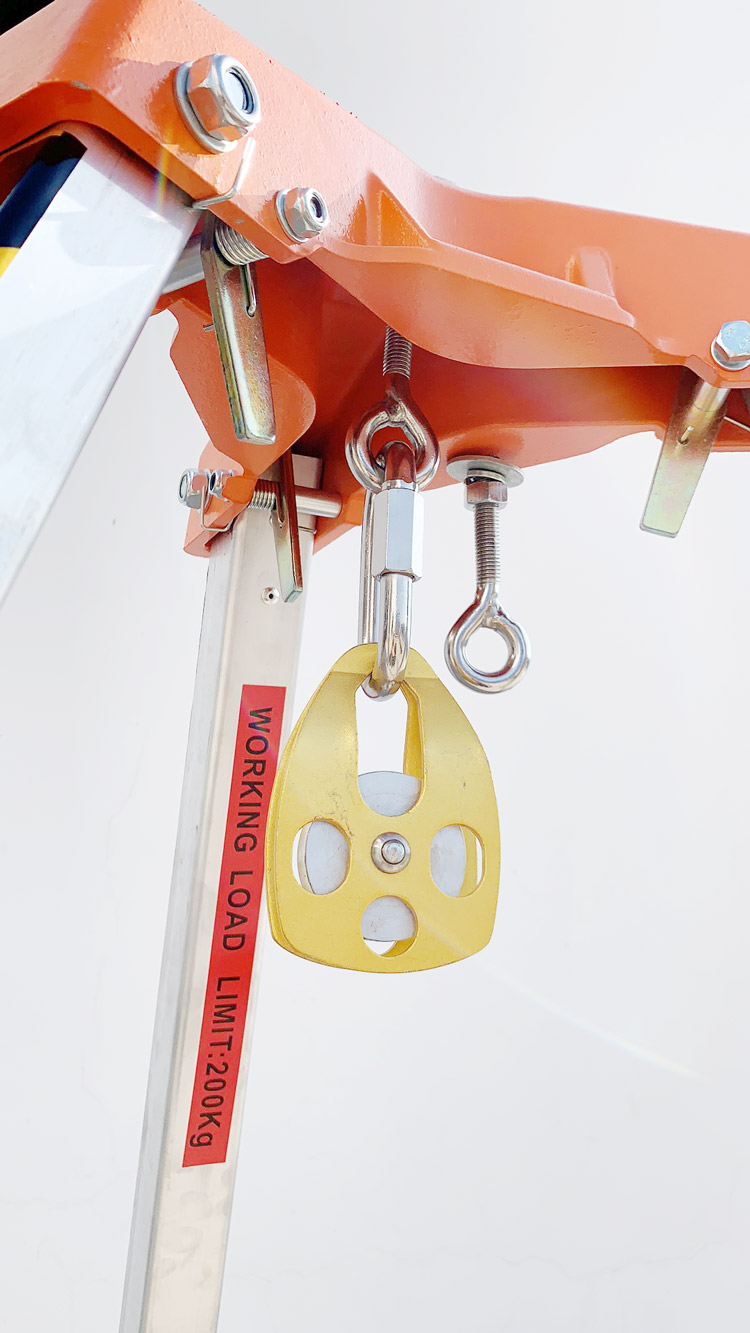

Self-lock device on winch of the rescue tripod, which ensures lock-in in any position, to make sure the safety of the sling;
Special stainless steel sling with good suppleness is taken used. The sling will not be damaged by corrosion or lack of oil;
The length of legs can be adjusted, suitable for rugged rescue situations
Name |
Rescue Tripod |
Closed Length |
130cm |
Extension Length |
228cm |
Operating Load |
400kg |
Breaking Load |
1200kg |
Max. Prevent Breaking Force |
22KN/4944.94Lbs(Steel Wire Rope) |
Length Scope |
134-214cm |
Packing Dimension |
175*23*23cm |
Weight |
17.3kg |
Winch with Automatic Brake Device |
|
Wire Length |
25m(NO. 284.01) |
Wire Diameter |
5mm |
Operating Load |
180kg |
Breaking Load |
1800kg |
Weight |
13kg |
